Truck Scale

Truck Scale

Pit mounted weighbridges

Pit mounted weighbridges are flush with the ground. As a result they pose no restrictions to vehicular Movement and are therefore particularly useful at sites where vehicle flow can be in multiple directions. Most mechanical weighbridges were installed in pits to accommodate the lever assemblies so when they are upgraded or replaced, new bespoke size pit very cost effective answer. ATCO have developed special mounting assemblies to facilitate the use of existing pits, ensuring the new decks sit level with the surface. This approach removes the need for costly and disruptive foundation changes.

Rugged, Reliable and Accurate Weighbridge

  • Accurate weight first time & every time.
  • Fast, economical installation.
  • Outstanding resistance to wear.
  • Outstanding resistance to wear.

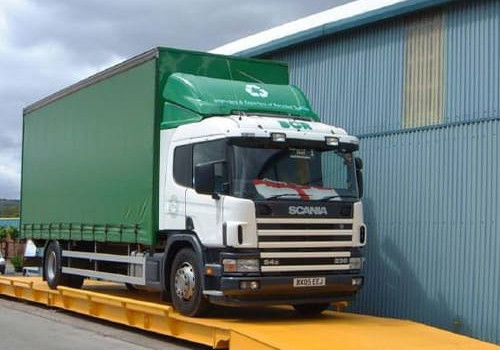

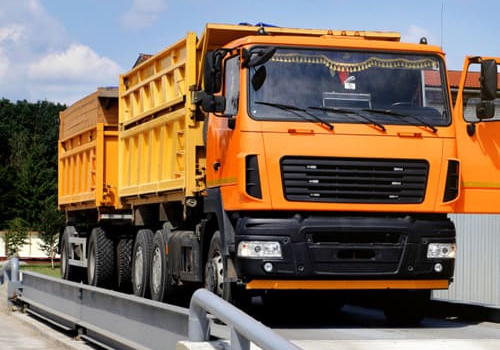

Pit less weighbridges

Pit less weighbridges offer straightforward installation procedures and the side frames help to guide Vehicles centrally through the bridge. Approach and departure ramps can either be of steel construction or pre-cast in concrete on-site. Removable steel ramps have the advantage of being able to be moved with the bridge if relocation is required, leaving the site level. Atco offer two main designs of steel Weighbridge. The modular weighbridge, which can be used in both surface and pit installations, provides a low profile solution for weighing normal size vehicles and is available up to 18 meters in length. The Pitless design (opposite) is ideal for weighing in length. The Pitless design (opposite) is ideal for weighing higher capacity vehicles, especially those that operate off beams and a varying concentration of cross beams to provide optimum strength at critical load points along the length.

Mobile Type Weighbridges

These weighbridges are designed with a view of easily movability & Portability. A second generation of digital Series weighbridges this almost portable weighbridge is constructed from high-strength mild steel structure fabricated in adequate sectional length/s connecting few sections together creates different sizes up to 24 m and capacities up to 100 MT on all models. This is a boon to the Road Construction / mining / EPC sector where frequent relocation is a common feature and Foundation costs are minimal in comparison to the conventional Pit types/ surface mounted foundations comprise flat solid craft with concrete approach ramps. The complete weighbridge can be disassembled & re-assembled within few hours making installation a light hearted affair. A low profile weighbridge that is versatile and easy to install, the structure is almost identical as the former. But because it is elevated.

Specification


S. No. Capacity Accuracy Width(mm) Pitless and Pitmounted Plate form L ength in mm
1 40000 kg 5kg 3000 7500 8000 9000 10000 12000 14000 16000
2 50000 kg 5kg 3000 7500 8000 9000 10000 12000 14000 16000
3 60000 kg 10 kg 3000 7500 8000 9000 10000 12000 14000 16000
4 80000 kg 10kg 3000 7500 8000 9000 10000 12000 14000 16000
5 100000 kg 20 kg 3000 7500 8000 9000 10000 12000 14000 16000
